LED Pendant Lighting

Polargy LED Pendant Lighting helps optimize your build as it is designed to match most specifications required with an equivalent product set. LED Pendant Lighting has emergency battery backup available and Plenum-rated wire ensuring safety in the event of a fire. The line is designed economically to reduce the number of driver attachments.

Contact Us for LED Pendant Lighting

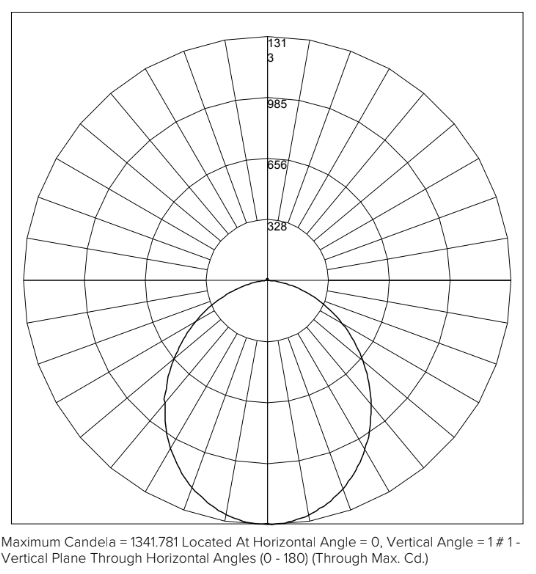

Photometrics

4,680 delivered lumens.

Luminance Data (cd/sq.m)
Angle In Degrees	Angle In Degrees	Angle In Degrees	Angle In Degrees
45	13954	7851	7168
55	12315	6298	5915
65	10372	5026	4885
75	7707	4015	4061
85	3550	3250	3410

Coefficients of Utilization - Zonal Cavity Method

Effective Floor Cavity Reflectance 0.20

RC	RW	80				70				50			30			10			0
RC	RW	70	50	30	10	70	50	30	10	50	30	10	50	30	10	50	30	10	0
0	0	177	177	177	177	113	113	113	113	106	106	106	100	100	100	94	94	94	92
1	1	105	99	94	89	101	96	91	87	90	86	83	85	82	79	80	77	75	72
2	2	95	85	78	71	91	83	76	70	78	72	67	73	68	64	69	65	62	59
3	3	86	75	66	59	83	72	64	58	68	61	55	64	58	54	61	56	52	49
4	4	78	66	57	50	75	64	55	49	60	53	47	57	52	46	54	48	44	42
5	5	72	59	49	42	59	57	48	42	54	46	41	51	44	39	48	43	38	36
6	6	66	53	44	37	64	51	43	36	49	41	35	46	40	34	44	38	33	31
7	7	62	48	39	32	59	47	38	32	44	37	31	42	35	30	40	34	30	28
8	8	57	44	35	29	55	42	34	29	40	33	28	39	32	27	37	31	27	25
9	9	54	40	32	26	52	39	31	26	37	30	25	36	29	25	34	28	24	22
10	10	50	37	29	23	48	36	28	23	34	28	23	33	27	22	32	26	22	20
