LED Lighting

LED Recessed Lighting

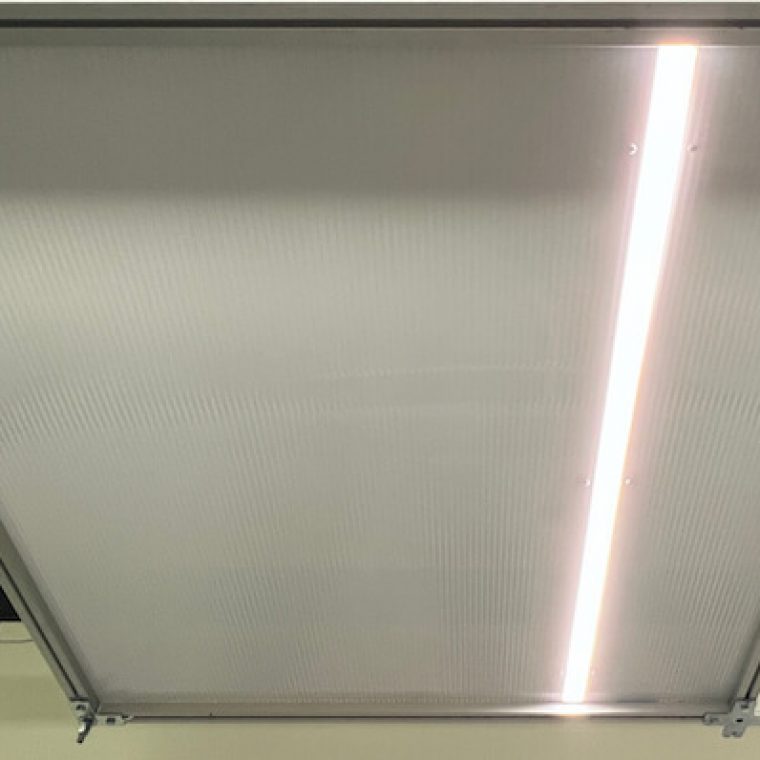

Ability to match most troffer specifications required with an equivalent product set. Plenum-rated wire standard and emergency battery backup available for maximum safety. Polargy LED Recessed Lighting is designed economically to reduce the number of driver attachments. Utilize a pendant light inside of twin-wall panel for quick and easy installation to meet your build requirements.

Contact us for LED Recessed Lighting

Photometrics

6,000 delivered lumens, tested in accordance with IESNA LM-79

Zone Lumen Summary
Zone	Lumens	%Lamp	%Fixture
0° – 30°	1733	26.9	26.9
0° – 40°	2818	43.7	43.7
0° – 60°	4937	76.5	76.5
0° – 90°	6450	100	100
90° – 120°	2	0	0
90° – 130°	2	0	0
90° – 150°	3	0	0
90° – 180°	3	0	0
0° – 180°	6453	100	100

Coefficients of Utilization (CU)

fc = 20%
cc 80%				cc 70%				cc 50%				cc 30%				cc 10%
pw 50%	30%	10%	0%	50%	30%	10%	0%	50%	30%	10%	0%	50%	30%	10%	0%	50%	30%	10%	0%
1	119	119	119	116	116	116	111	111	111	106	106	106	102	102	102	101	101	101	1
2	103	99	94	101	97	93	96	93	90	93	90	87	89	87	85	—	—	—	2
3	89	82	76	88	81	75	84	78	74	81	76	72	78	74	70	—	—	—	3
4	78	70	63	77	69	63	74	67	62	71	65	60	68	64	50	—	—	—	4
5	69	60	53	68	60	53	65	58	52	63	57	52	61	55	51	—	—	—	5
6	62	53	46	61	42	46	59	51	45	57	50	45	55	49	44	—	—	—	6
7	56	47	40	55	46	40	53	45	40	51	44	39	50	44	39	—	—	—	7
8	51	42	35	50	41	35	48	41	35	47	40	35	45	39	34	—	—	—	8
9	46	38	32	45	37	32	44	37	31	43	36	31	42	35	31	—	—	—	9
10	42	34	28	42	34	28	41	33	28	40	33	28	38	32	28	—	—	—	10
11	39	31	26	39	31	26	38	30	26	37	30	25	36	30	25	—	—	—	11
